At Badotherm, we take pride in delivering precise and reliable diaphragm seal systems tailored to the toughest industrial environments. Today, we’re showcasing a recent highlight: a custom diaphragm seal system designed for the fertilizer industry, built to meet the demanding SNAM TB.5002 specifications.
Featured Configuration

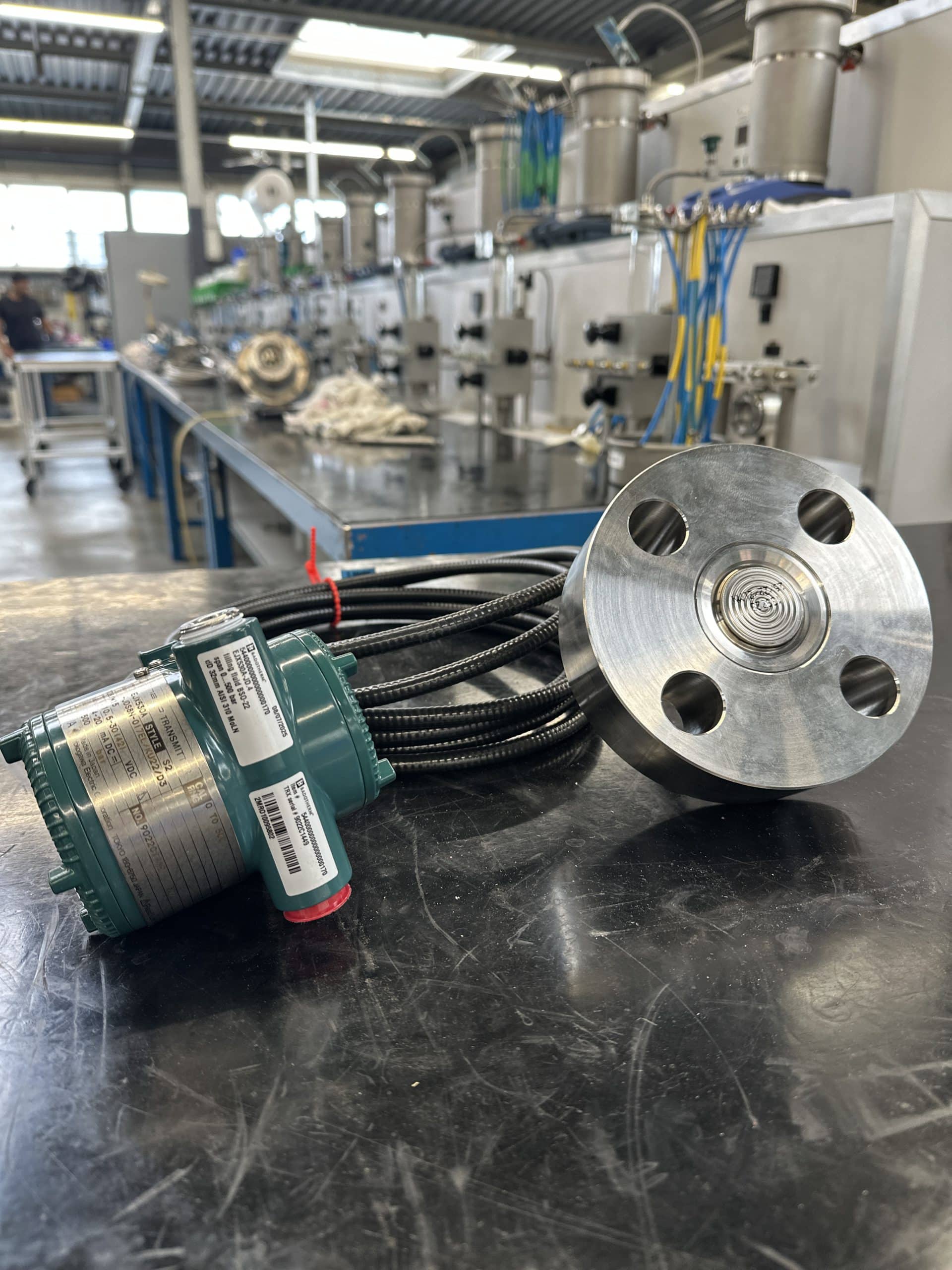

This installation features a Yokogawa EJX530A high-pressure gauge transmitter, perfectly paired with a Badotherm FSO-EXT UREA design. This configuration is particularly suited for high-pressure applications in urea processes.
Key technical details include:
This system was calibrated at 500 bar and underwent static pressure testing up to the transmitter’s maximum allowable pressure.

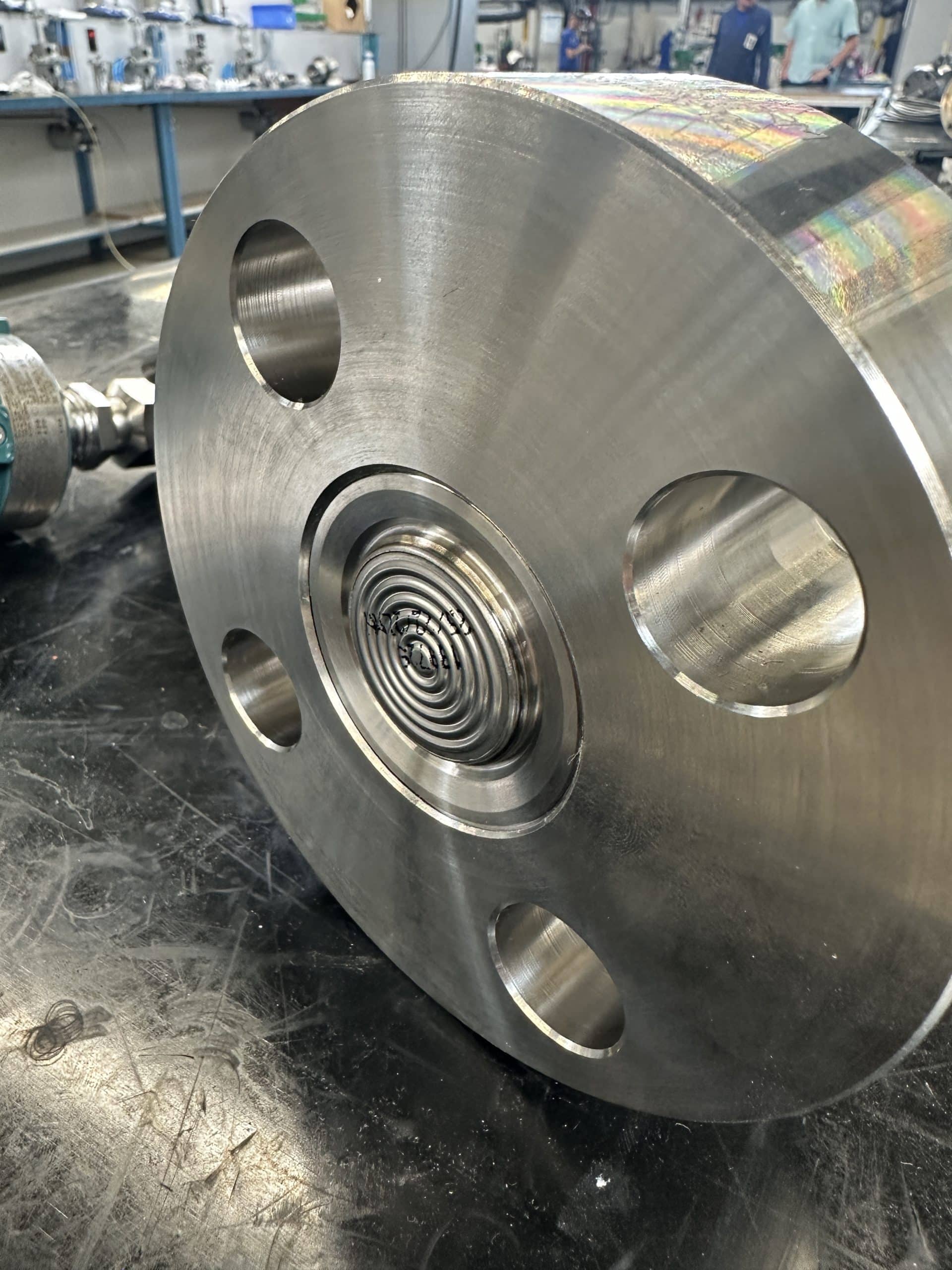

A Closer Look at the “Extended” Design
While classified as an extended type, this diaphragm seal system features an extension of only 0.5 mm. Technically an extension, but just barely — a detail that speaks to the precision and flexibility of our design capabilities.
Material Selection Matters

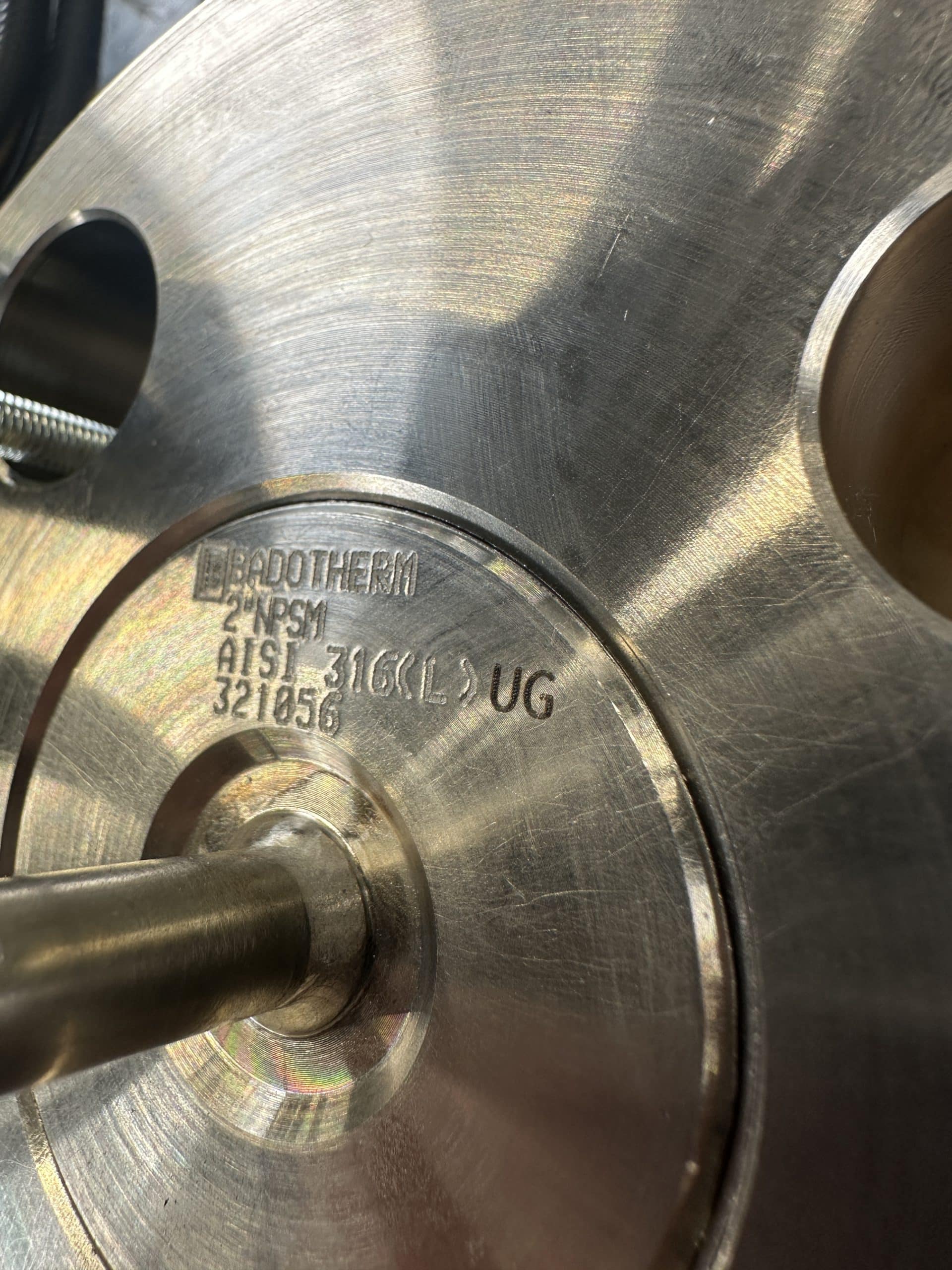

Operating in the urea production environment means exposure to carbamate-induced corrosion and stress corrosion cracking — two of the harshest conditions for process instrumentation. That’s why materials like AISI 316L UG and 310MoLN are being used, which are proven to resist these aggressive chemical phenomena.
As standard for urea-grade applications, the material certifications include:
Datasheet: FSO EXT UREA type extended diaphragm slip on flange
Website: Badotherm Fertilizer
