In the past year, several end-users in the Americas have been supplied with Safurex® diaphragm seal systems to confront the harsh process conditions. But also for end users in the Middle East region and Asia, the material is starting to be used. Looking forward to building strong business cases and proven track records with this material in diaphragm seal systems

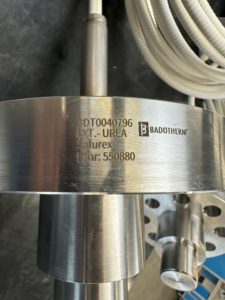

The specific configuration shown on the picture is a special custom design diaphragm seal system, based on a legacy process connection with a special stepped shaped diaphragm seal component, all made in Safurex®.

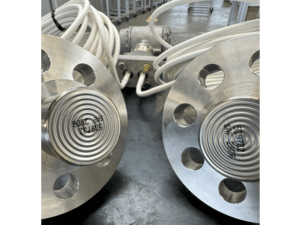

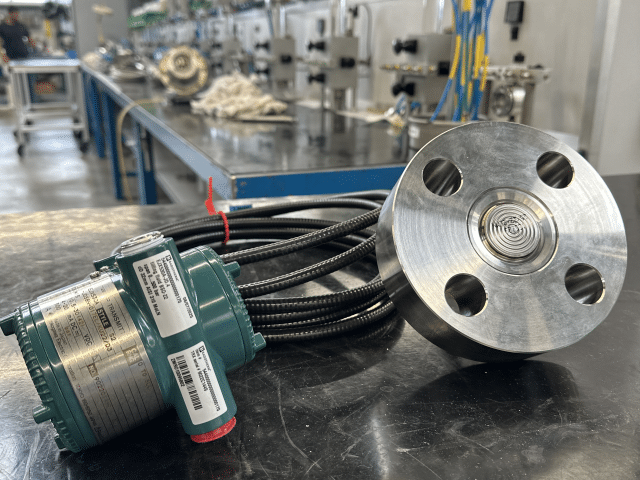

Custom design seal based on FSO-EXT in full wetted parts in Safurex® and 72mm Safurex® diaphragm with cover flange AISI 316(L) size 3″ 2500# RF and extension length of 178mm and 76mm diameter and 5meter of capillary with with PVC sleeve. In this occasion equipped with a Rosemount Emerson 3051CD pressure transmitter.
