High pressure pressure gauge

The Badotherm ultra-high pressure gauge line is has two editions. The BDT18 and the BDT20. The BDT20 is supplied in complete compliance with the requirements and test conditions of the new DIN 16001 high-pressure standard.

The DIN16001 fills the gap for pressure gauges with ranges above 1600 bar. Badotherm BDT20 high pressure series are solid front, full blow out back, safety pattern type in accordance with safety category S3. Up to 1600 bar was covered by the EN837-1 standard.

DOWNLOAD PDF

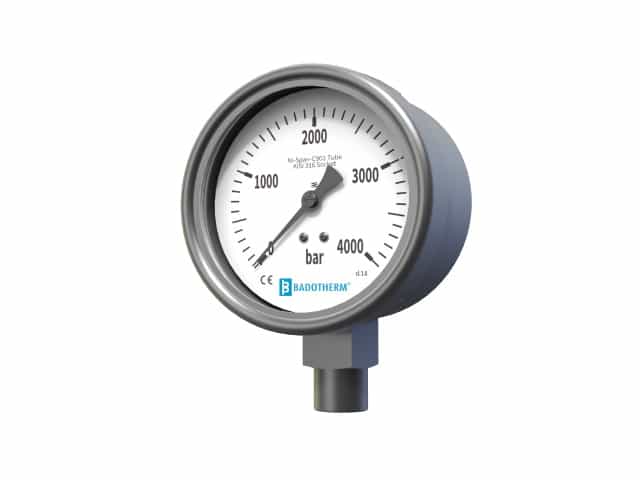

BDT18 HP – High pressure Industrial process pressure gauge

This pressure gauge is typically used for applications in the chemical, petro-chemical, oil & gas, power and utilities, machine building and general process industries. Safety comes first, with a blow-out feature, pressure elements made high quality tubes and the welded type connection construction

This pressure gauge is typically used for applications in the chemical, petro-chemical, oil & gas, power and utilities, machine building and general process industries. Safety comes first, with a blow-out feature, pressure elements made high quality tubes and the welded type connection construction

DOWNLOAD PDF

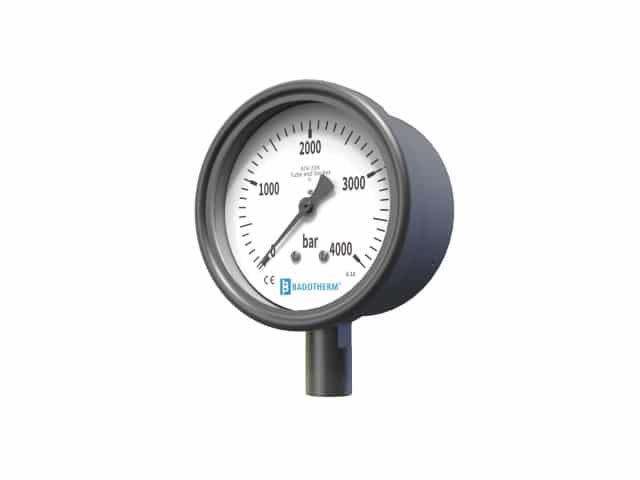

BDT20 HP – DIN 16001 safety high pressure gauge

The BDT20 HP is fully in line with the new DIN 16001 standard. This gauge is made from a case with a blow out back and a baffle wall and can be executed with a broad range of high pressure male and female connections.

The BDT20 HP is fully in line with the new DIN 16001 standard. This gauge is made from a case with a blow out back and a baffle wall and can be executed with a broad range of high pressure male and female connections.
