Diaphragm pressure gauges

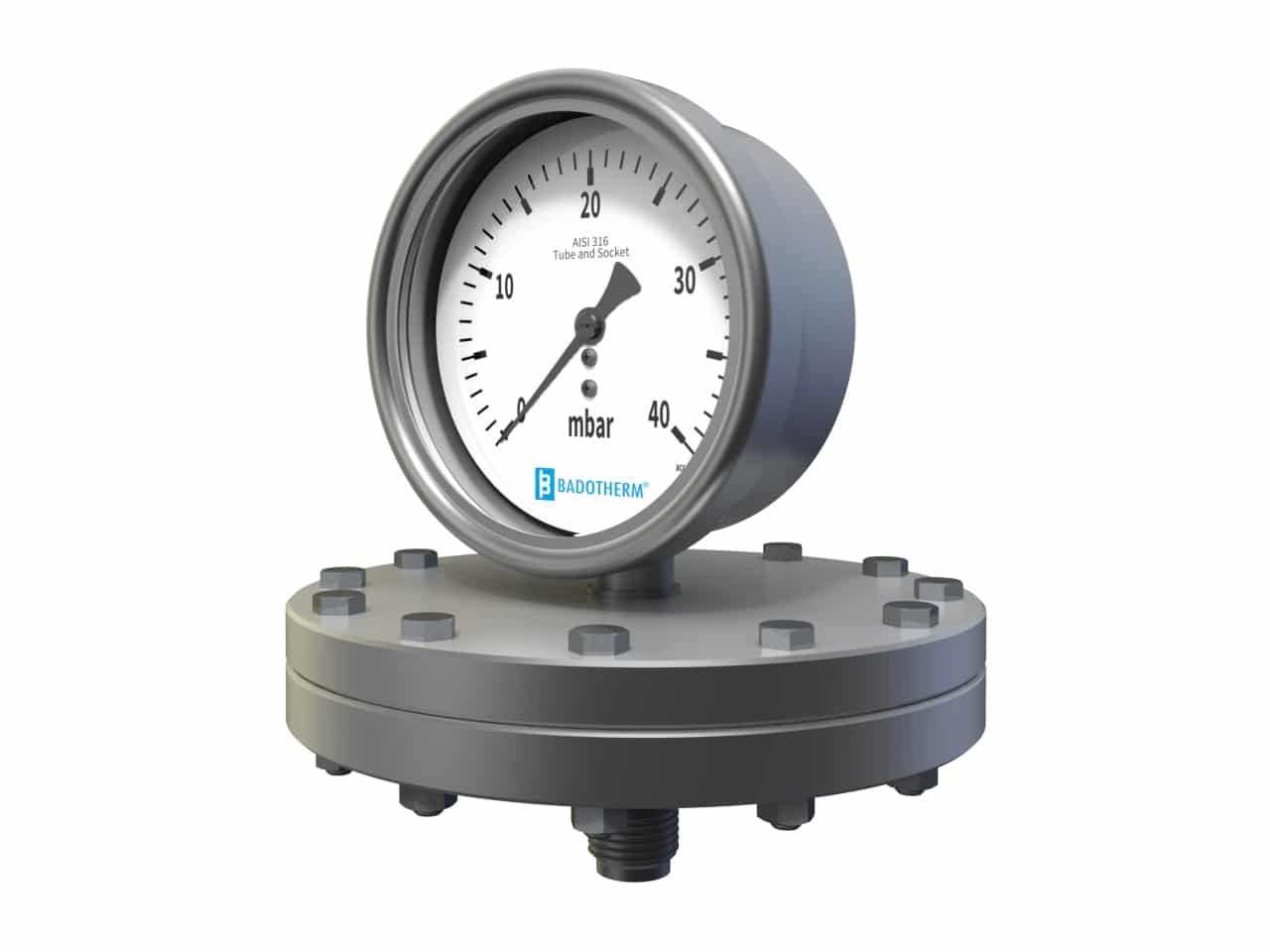

Badotherm pressure gauge model BDT12 is a diaphragm type pressure gauge and suitable for all gaseous and liquid media, as well as for viscous media and suspended solids.

Badotherm pressure gauge model BDT12 is a diaphragm type pressure gauge and suitable for all gaseous and liquid media, as well as for viscous media and suspended solids.

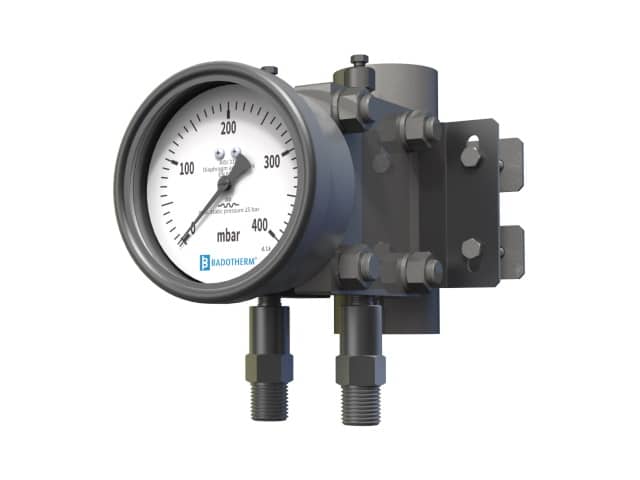

Badotherm differential pressure gauge model BDT13 has a stainless steel diaphragm and one pointer to read the differential pressure. The variation in high static pressure makes this gauge suitable for almost all differential measurements.

Badotherm differential pressure gauge model BDT13 has a stainless steel diaphragm and one pointer to read the differential pressure. The variation in high static pressure makes this gauge suitable for almost all differential measurements.

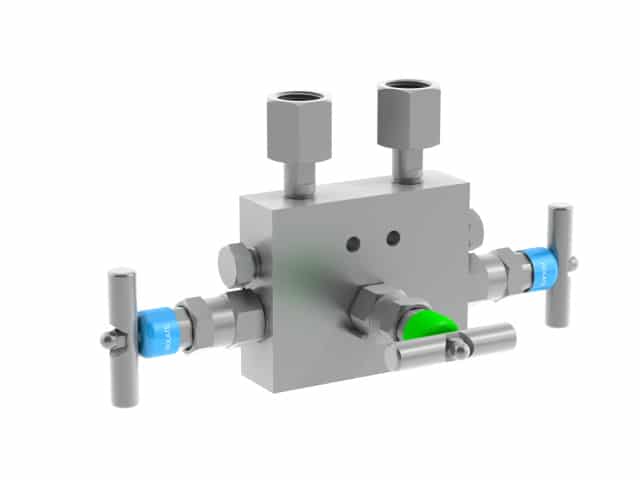

The BDTM932 is specifically designed to be mounted under a differential pressure gauge. This gauge has a G1/2A connection with a standard 54mm hart to hard distance.

The BDTM932 is specifically designed to be mounted under a differential pressure gauge. This gauge has a G1/2A connection with a standard 54mm hart to hard distance.

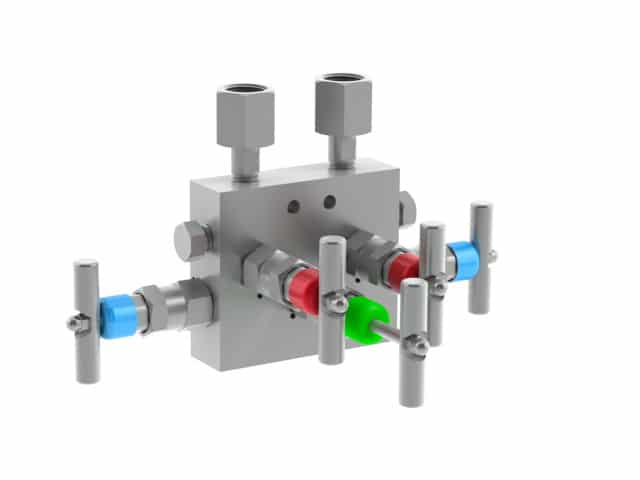

This BDTM953 manifold has a rotating G 1/2 nut construction for direct mounting on a DP pressure gauge. The process side has a 1/2″ NPT connection for remote mounting to the process pulse lines.

This BDTM953 manifold has a rotating G 1/2 nut construction for direct mounting on a DP pressure gauge. The process side has a 1/2″ NPT connection for remote mounting to the process pulse lines.

The BF construction has a seal body that is made of a (forged) blind flange. The weld of the diaphragm to the seal body is a wetted part and therefore diaphragm materials are mostly chosen the same as the flange material. The BF is typically used in combination with (differential) pressure transmitters for applications such as level, flow  and (absolute) pressure measurement.

The BF construction has a seal body that is made of a (forged) blind flange. The weld of the diaphragm to the seal body is a wetted part and therefore diaphragm materials are mostly chosen the same as the flange material. The BF is typically used in combination with (differential) pressure transmitters for applications such as level, flow  and (absolute) pressure measurement.

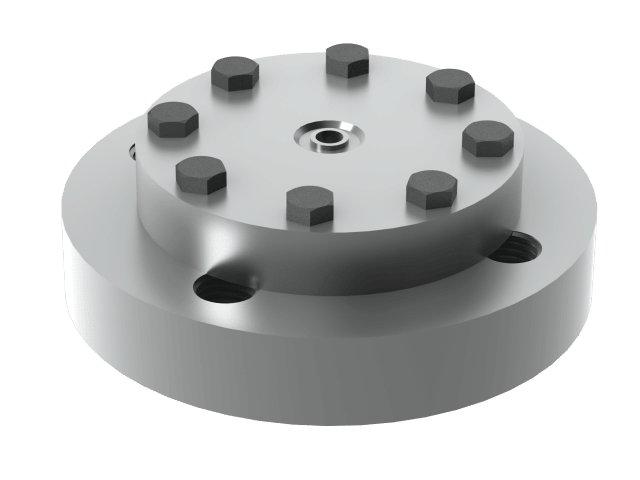

The USL-F construction is designed for those applications where the existing process connection is too small to use a flush diaphragm seal. The USL-F consists of an upper and lower housing, the upper is the actual seal part with a diaphragm size that allows for measurement of low ranges. The lower housing creates the transition from the diaphragm size to the smaller process connection.

The USL-F construction is designed for those applications where the existing process connection is too small to use a flush diaphragm seal. The USL-F consists of an upper and lower housing, the upper is the actual seal part with a diaphragm size that allows for measurement of low ranges. The lower housing creates the transition from the diaphragm size to the smaller process connection.
