Block and bleed valves

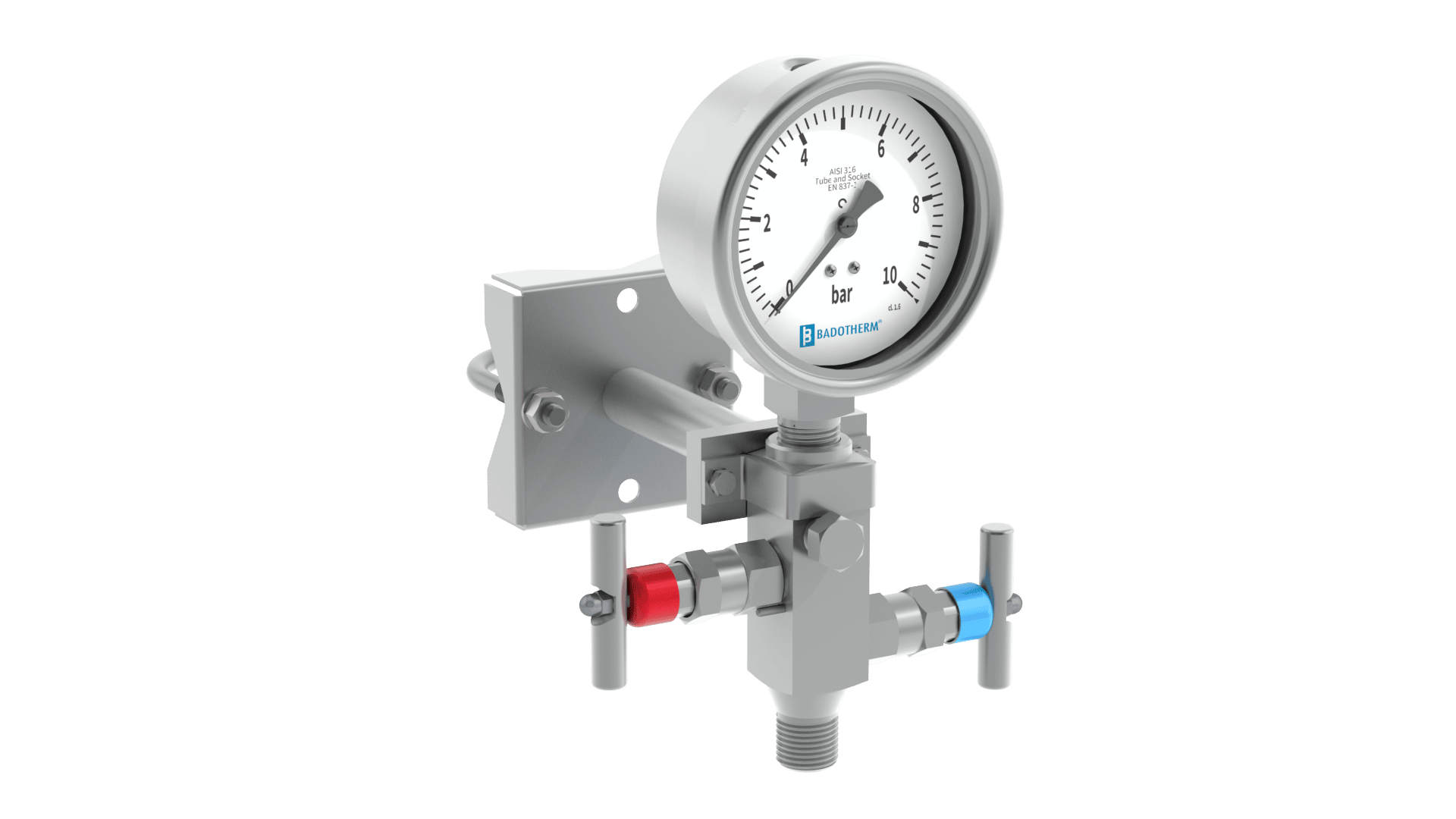

Block and bleed needle valves are commonly used where it is important to depressurize the pressure instrument after isolating it from the process. This allows a safe removal of the pressure instrument and replacing it with a new one. Secondly the vent port can be connected to drain tubing to remove the process gasses and fluids to a safe container in order not to vent it in the atmosphere. The vent port can also be used to connect reference instrumentation for periodic checks of the pressure instruments.

Block and bleed valves

DOWNLOAD PDF

Block and bleed – straight model

The BDTM924 Block and bleed model made from square bar stock material. This model is usually seen directly mounted to a pressure instrument nd can be used for isolation, bleeding, calibration and testing of the pressure instrument.

The BDTM924 Block and bleed model made from square bar stock material. This model is usually seen directly mounted to a pressure instrument nd can be used for isolation, bleeding, calibration and testing of the pressure instrument.

DOWNLOAD PDF

Block and bleed – flat in line

The BDTM923 Block and bleed model made from strip material. This model is usually seen directly mounted to a pressure instrument nd can be used for isolation, bleeding, calibration and testing of the pressure instrument. it is called a “flat model” where the valves are mounted inline with the block.

The BDTM923 Block and bleed model made from strip material. This model is usually seen directly mounted to a pressure instrument nd can be used for isolation, bleeding, calibration and testing of the pressure instrument. it is called a “flat model” where the valves are mounted inline with the block.

DOWNLOAD PDF

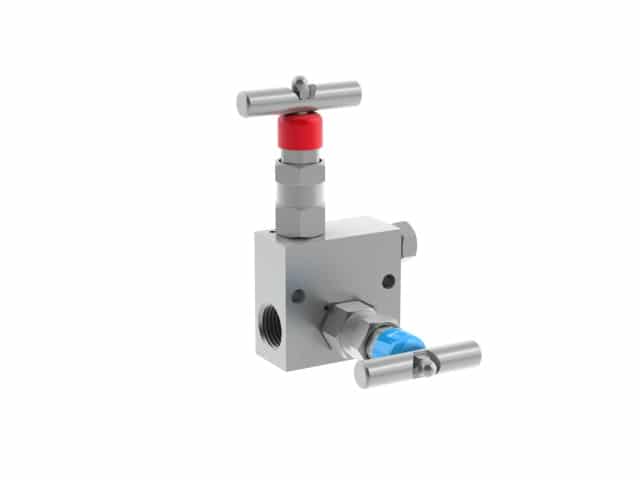

Block and bleed – flat angled

The BDTM922 Block and bleed model made from strip material and is an angled type block and bleed valve where the isolate faces forward and the vent is on the side of the block. This model is usually seen directly mounted to a pressure instrument and can be used for isolation, bleeding, calibration and testing of the pressure instrument. it is called a “flat model” where the valves are mounted inline with the block.

The BDTM922 Block and bleed model made from strip material and is an angled type block and bleed valve where the isolate faces forward and the vent is on the side of the block. This model is usually seen directly mounted to a pressure instrument and can be used for isolation, bleeding, calibration and testing of the pressure instrument. it is called a “flat model” where the valves are mounted inline with the block.

DOWNLOAD PDF

Block and bleed – Angled forward

The angled forward BDT921 valve has a vent valve under a 15° forward angle to create space between the wall or product behind the manifold. This way the valve can be rotated without any problems.

The angled forward BDT921 valve has a vent valve under a 15° forward angle to create space between the wall or product behind the manifold. This way the valve can be rotated without any problems.

DOWNLOAD PDF

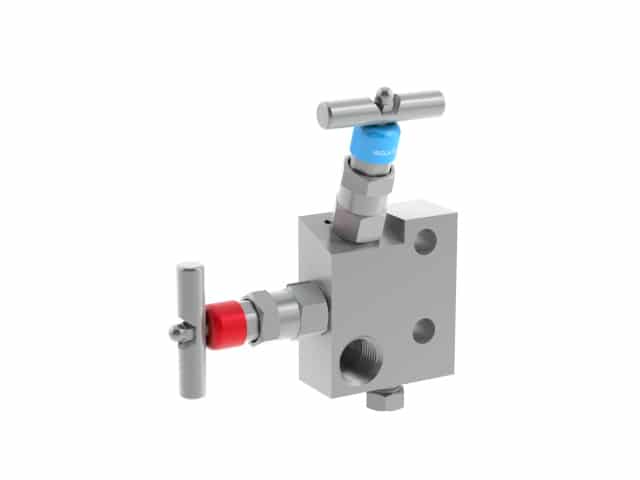

Block and bleed – IEC – Angled forward

The angled forward BDT925 valve has a vent valve under a 15° forward angle to create space between the pressure transmitter behind the manifold. The BDTM925 has an IEC flange connection in order to fit directly to the pressure transmitter.

The angled forward BDT925 valve has a vent valve under a 15° forward angle to create space between the pressure transmitter behind the manifold. The BDTM925 has an IEC flange connection in order to fit directly to the pressure transmitter.

DOWNLOAD PDF

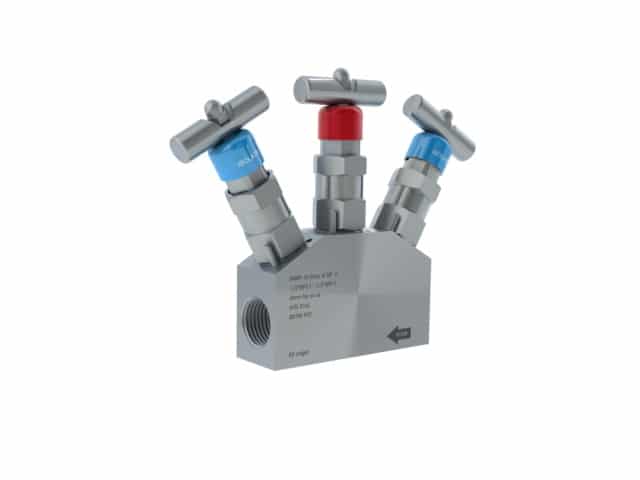

Double block and bleed valve

The BDTM937 Double block and bleed valve is an extra secure version that houses two isolate valves to block the pressure from two sides of the valve and has a vent valve for draining or calibration purposes.

The BDTM937 Double block and bleed valve is an extra secure version that houses two isolate valves to block the pressure from two sides of the valve and has a vent valve for draining or calibration purposes.
