Three valve manifolds

Badotherm three valve manifolds can be used for isolation, calibration and testing of differential pressure instruments. The manifolds can be directly mounted to the pressure instrument, or remotely mounted with pressure tubing. Depending on the type, the 3 valve manifold can be supplied with or without a purge connection. All Badotherm manifolds are standard stainless steel and optional available in exotic materials, such as Alloy C276 and Alloy 400. This manifold has a non-rotatable conical tip to ensure perfect alignment. Badotherm manifolds are manufactured within the European Union.

Three valve manifolds

DOWNLOAD PDF

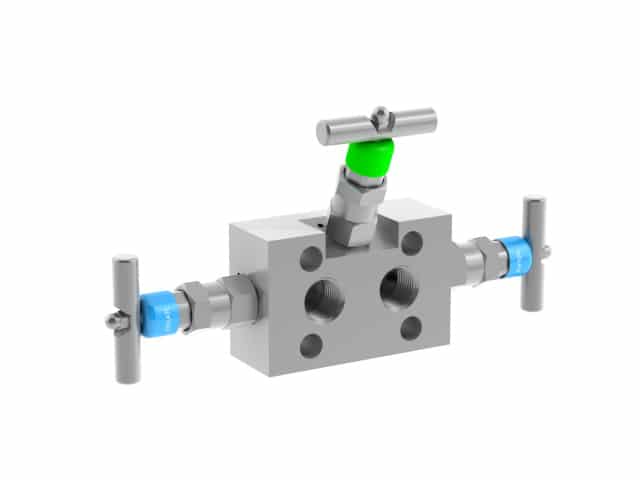

BDTM931 – IEC compact model

This manifold has a ½” NPT female threaded x flanged IEC 61518-B connection for direct mounting to the DP pressure transmitter. Due to its compact design it is cost effective and uses less space when mounted.

This manifold has a ½” NPT female threaded x flanged IEC 61518-B connection for direct mounting to the DP pressure transmitter. Due to its compact design it is cost effective and uses less space when mounted.

DOWNLOAD PDF

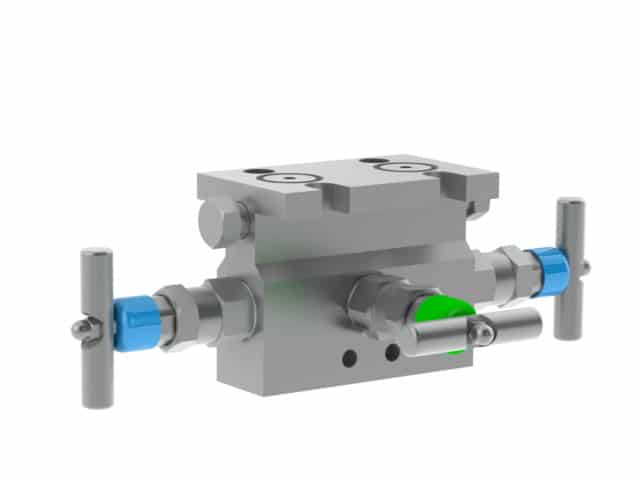

BDTM936 – IEC traditional model

This manifold has one sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. The process connection is a NPT threaded connection. Due to the wide design and use of a lot of material it is called the “traditional” design. The BDTM931 is the compact design with the same functions.

This manifold has one sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. The process connection is a NPT threaded connection. Due to the wide design and use of a lot of material it is called the “traditional” design. The BDTM931 is the compact design with the same functions.

DOWNLOAD PDF

BDTM932 – G1/2 rotating

The BDTM932 is specifically designed to be mounted under a differential pressure gauge. This gauge has a G1/2A connection with a standard 54mm hart to hard distance.

The BDTM932 is specifically designed to be mounted under a differential pressure gauge. This gauge has a G1/2A connection with a standard 54mm hart to hard distance.

DOWNLOAD PDF

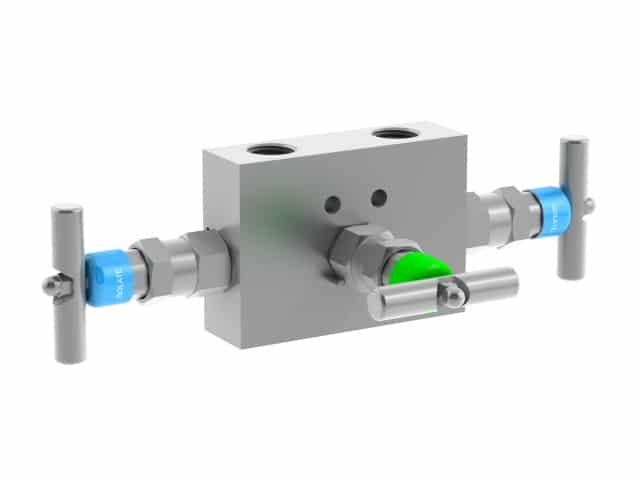

BDTM934 – 1/2″ NPT remote mount model

This BDTM934 is the remote mount model of the three valve manifolds. The valve can be connected to a set of pulse lines or distant mounted to the pressure instrument by tubing.

This BDTM934 is the remote mount model of the three valve manifolds. The valve can be connected to a set of pulse lines or distant mounted to the pressure instrument by tubing.

DOWNLOAD PDF

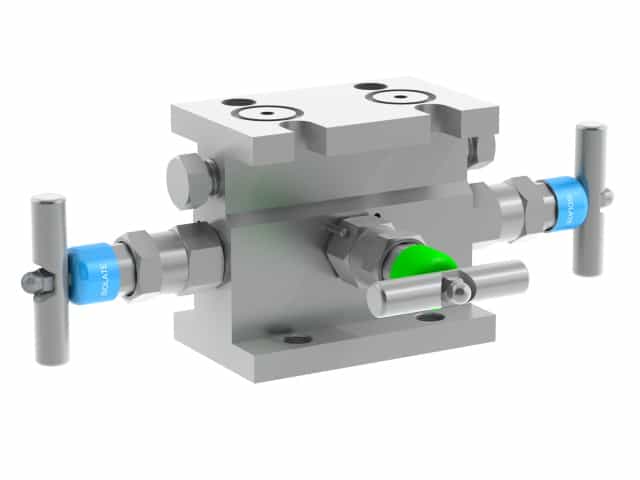

BDTM933 – IEC traditional model

This manifold has both sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. due to the wide design and use of a lot of material it is called the “traditional” design. The BDTM938 is the compact design with the same functions.

This manifold has both sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. due to the wide design and use of a lot of material it is called the “traditional” design. The BDTM938 is the compact design with the same functions.

DOWNLOAD PDF

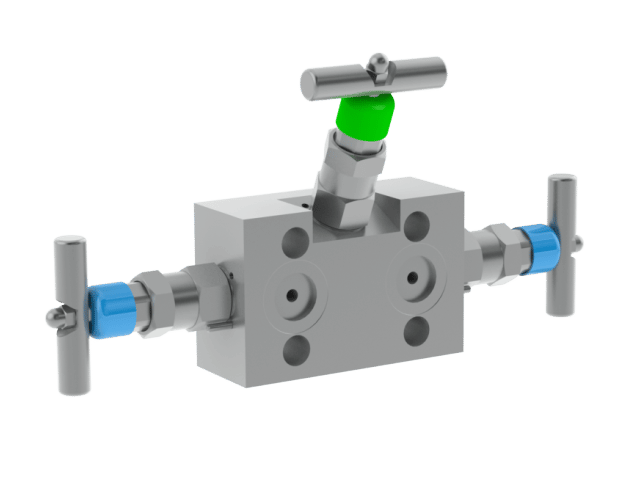

BDTM938 – IEC compact model

This manifold has two sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. The removal of the two faces on the top and bottom make it a more compact model. The BDTM933 is the traditional design with the same functions.

This manifold has two sides a flanged IEC 61518 connection for direct mounting to the DP pressure transmitter. The removal of the two faces on the top and bottom make it a more compact model. The BDTM933 is the traditional design with the same functions.
